Noise pollution is an ongoing problem from the sounds of noisy neighbors, vehicle traffic to loud commercial project noises.

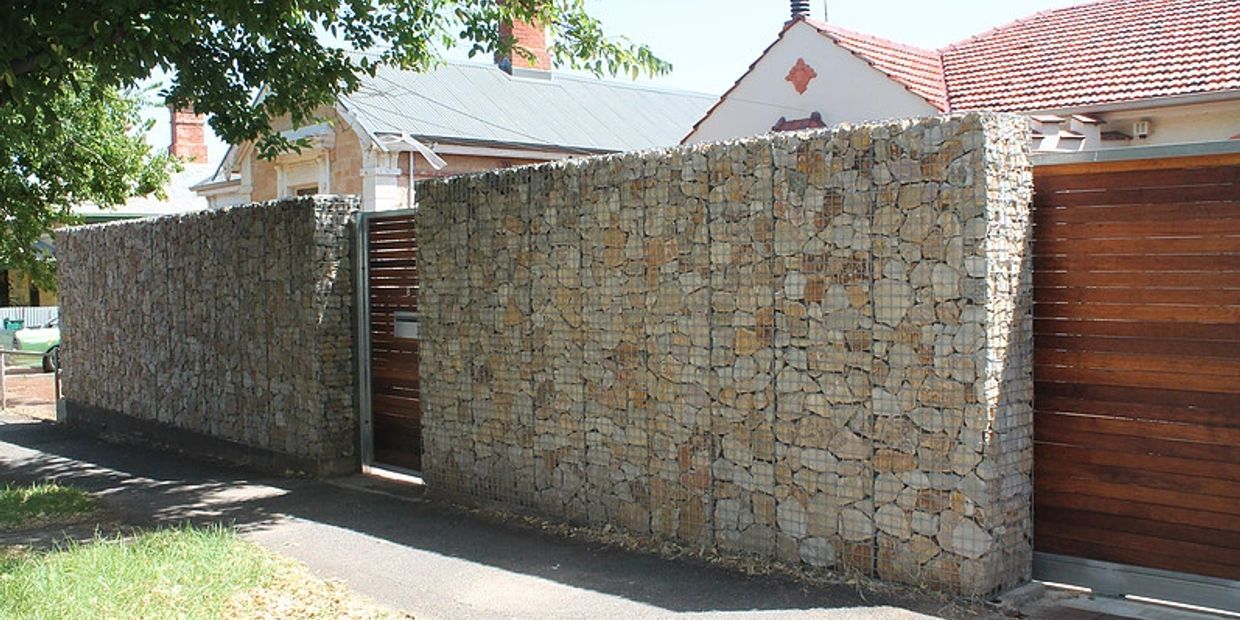

We offer an economical solution to help absorb these problem noises with our Quite-Life™ noise barrier gabion walls. These walls are not only functional in absorbing noises but also offers privacy and a natural looking accent when decorating a property.

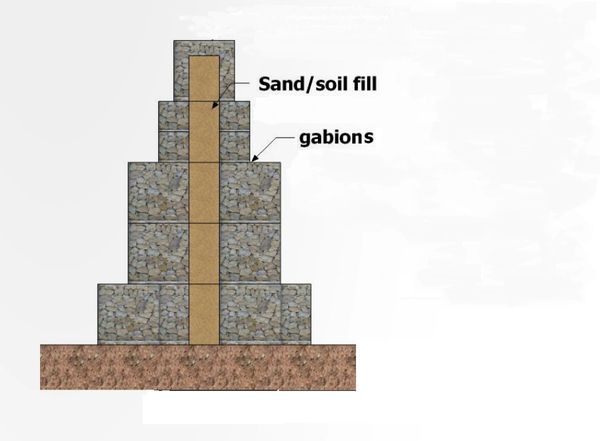

Our Quiet-Time™ gabion walls are usually 8 -10 ft high and made of narrow width welded wire gabion cages filled with rocks plus sand filled or patented ECHO BARRIER sound absorbing panels inserted in the rock fill.

The gabion wire mesh finish is typically galvanized steel, weathered (coreten) or powder coated steel for corrosion protection and extended life.

Stainless steel, Corten weatered steel and plain rusty steel is often used for decorative accents in metro areas or as a rustic appearance in dry desert areas

Gabion walls can be built on a flat plain or inclined on a hilly terrain.

Contact us to discuss your project

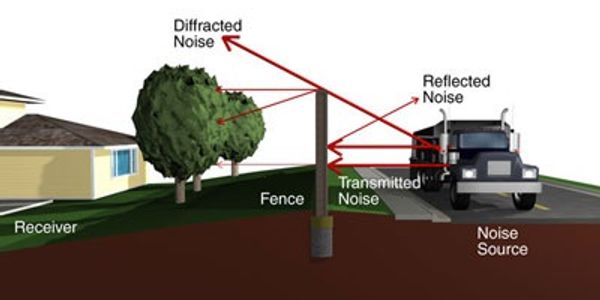

This illustration shows sound reaching to a listener either directly (in a straight line) or indirectly by reflection or diffraction, which can cause sound to ‘bend’ around a corner. When a noise barrier is present, the direct path is interrupted.

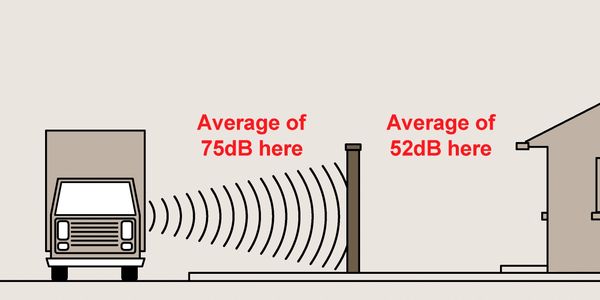

Shown here is a gabion noise barrier wall between the source of the noise and the receiver that significantly reduces the amount of sound reaching the receiver

The height of a gabion noise barrier wall is a key parameter in noise reduction. Generally the higher the barrier, the greater the level of noise reduction. As a general rule, a noise barrier should at least be high enough to block the line-ofsight from a house to the engines of vehicles on a road.

QUITE-TIME™ NOISE BARRIER GABION WALL

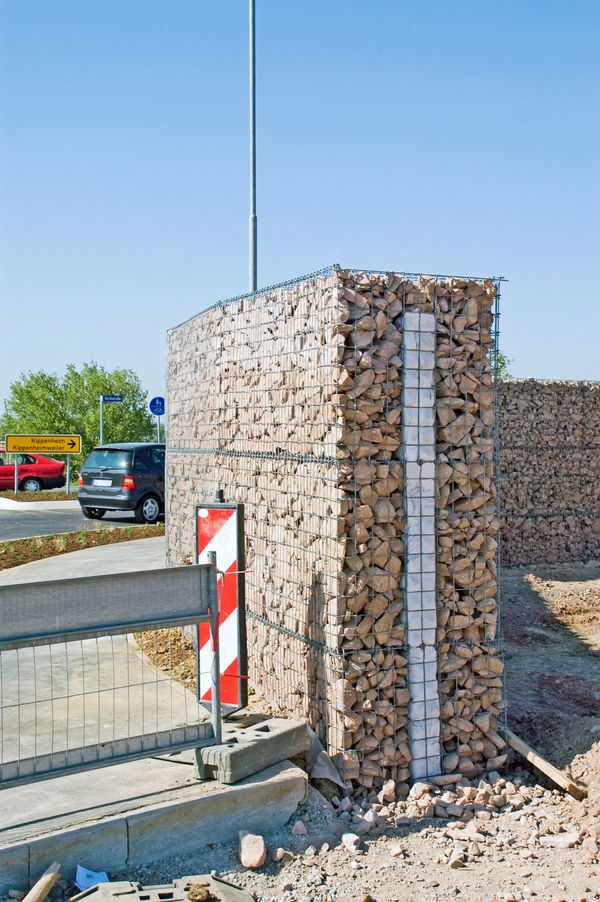

Shown here is a Quite-Time™ Noise Barrier Gabion Wall System.

It resembles a conventional gabion wall having natural rock faces plus a noise absorbing ECHO panel inserted in the middle chamber achieving a high noise absorbency.

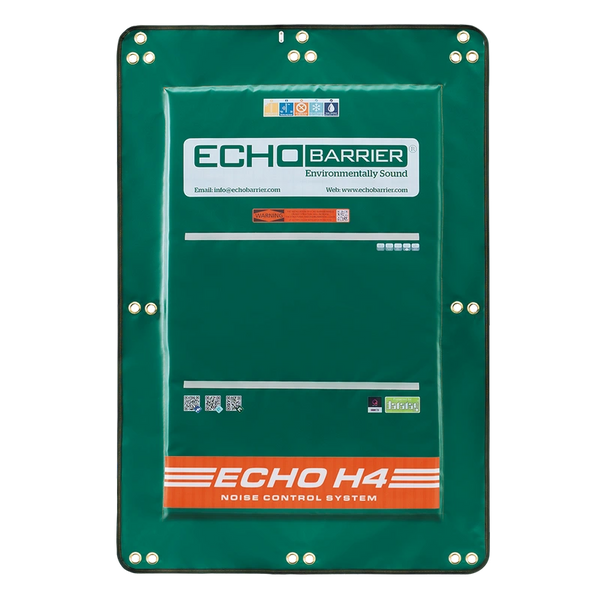

ECHO ACOUSTIC BARRIER

The best temporary noise control on the market

Echo Barrier's H4 acoustic barrier delivers unparalleled performance, and is one of the best all-around noise reduction solutions we offer. H4 insulates against noise and absorbs sound, and provides top-level noise pollution protection for workers and local residents alike. Like all Echo Barrier products, the H4 is easy to deploy quickly.

WATERPROOF NOISE BARRIER PANELS

The ECHO BARRIER panels are resistance to water and extreme temperature

they do not absorb water when exposed to heavy rain. They have also been proven to withstand extremes of temperatures – from 160°F (70°C) down to minus 40°

Gabion noise barrier walls and gabion fences

QUITE-TIME™ NOISE BARRIER GABION WALL

ECHO ACOUSTIC BARRIER

WATERPROOF NOISE BARRIER PANELS

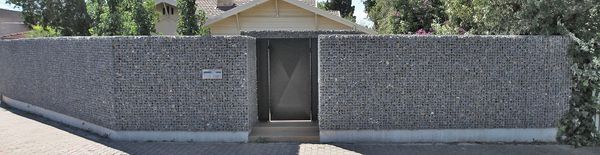

EXAMPLE photo: QUITE-tIme™ NOISE BARRIER GABION WALL
