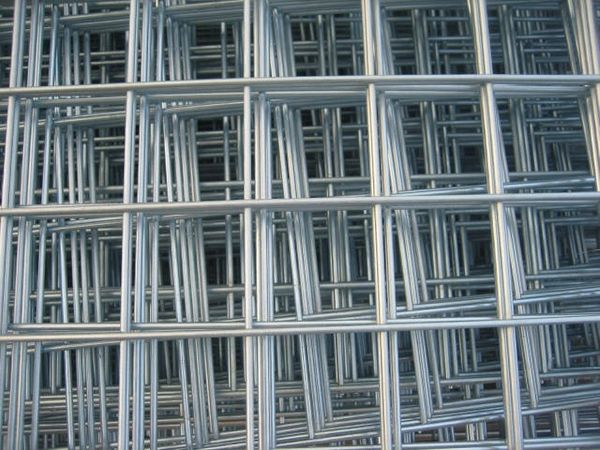

PRO-TEC™ galvanized WIRE GABIONS

---

• Class 3 galvanizing is our standard gabion wire finish in accordance with ASTM specs. It provides a strong, long lasting zinc coating. The zinc coating is applied at 0.80 onces per sq ft and has an expected life of 13-30 years

• PRO-TEC™ 11 Gauge Gabions Materials Wire Mesh Opening 3” x 3” Diameter 11 Gauge ( 0.120”) Galvanized 0.8 oz / ft Tensile Strength 60,000 psi min. Weld Shear Strength 450 ft-lbs Spiral Wire Diameter 11 Gauge ( 0.120”) Galvanized 0.8 oz / ft Tensile Strength 60,000 psi min. Lacing Wire Diameter 13.5 Gauge ( 0.087”) Galvanized 0.8 oz / ft Tensile Strength 60,000 psi min. Preformed Stiffeners 11 Gauge ( 0.120”)

• PRO-TEC™  9 Gauge Gabions Materials Fabrication In accordance with ASTM A974. PRO-TEC™ Gabions are manufactured with all panels mechanically connected at the factory. They are supplied in collapsed form and stacked in bundles for easy job site assembly. Where the length of the gabion exceeds the width, the length is divided equally into cells using diaphragm panels so that each cell is no greater than one cubic yard. Each PRO-TEC™  gabion is supplied with enough accessories - helical spirals, temporary fasteners, lacing wire, and preformed stiffeners  to completely assemble and install, with minimal tools required.

 Galfan gabions are made of Galfan coated steel wire mesh

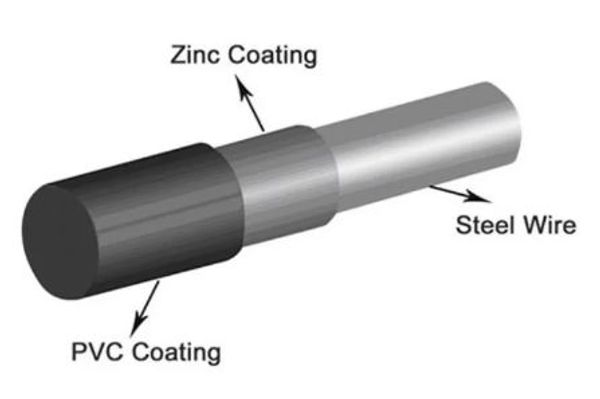

in accordance with ASTM A856M.  A corrosion resistant coating consisting of a zinc base followed by a 7.2% zinc/aluminum alloy that offers better corrosion and abrasion resistance for gabions in a corrosive environment. Performance is superior to gabions made of galvanized or PVC coated steel wires. They are widely used for channel linings and coastal applications and come in welded wire versions with a variety of wire thicknesses and mesh openings.

• Note ...  Galfan gabions are slightly higher in cost than galvanized gabions, but offer 2-3 times the service life and  corrosion resistance of galvanized gabions
